The fruit and vegetable grader sorts fresh produce based on size or weight. It is suitable for a wide range of produce, including potatoes, tomatoes, cherries, citrus fruits, apples, onions, and mangoes. Our fruit & vegetable grading equipment helps fruit and vegetable packing houses and vegetable processing plants reduce manual sorting labor and prepares the produce for subsequent packaging and sales.
Your produce, your grading needs, your machine. Contact Foodline to discuss the right setup.
Foodline Fruit and Vegetable Grader for Sale
The fruit and vegetable grading machine sorts fresh produce into different grades based on preset criteria. These criteria can include size, diameter, or weight. Once the produce enters the grading zone, the machine inspects each item using its mechanical grading structure or weighing system. The produce is then directed to different discharge outlets based on its grade.
Size grading is suitable for produce with significant variations in diameter or shape. Weight grading is ideal for produce where weight is a more critical factor than size.
Fruit and vegetable graders help reduce manual sorting labor and improve the classification of fresh produce prior to packaging, storage, or further processing.
From cherries to potatoes, Foodline has a grading machine for your produce. Send us your requirements today.

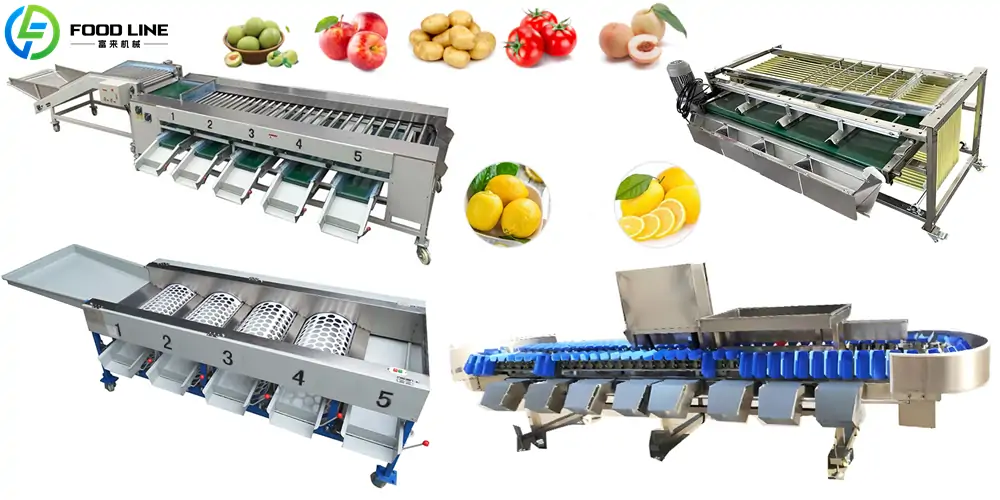

Types of Foodline Fruit and Vegetable Sorting Machine
The main types of our fruit and vegetable grader machine include size graders and weight graders.

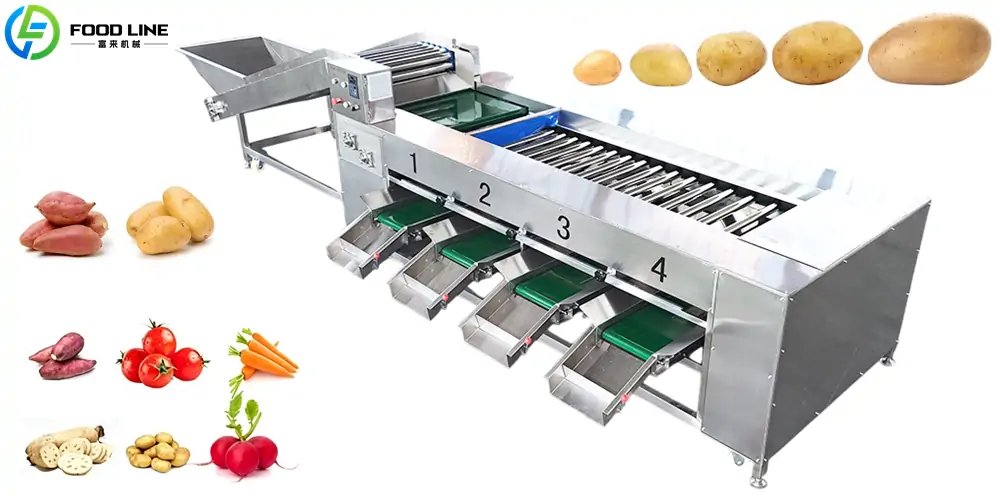

Size grading machines for fruits & vegetables
It is suitable for root vegetables such as potatoes and onions, as well as other fruits and vegetables that can withstand handling and minor impacts.
Rollers drive the produce forward, while the gap between the rollers gradually widens. Smaller produce falls through the narrower gaps first, while larger produce continues to the next grading section.
Key Features:
- Adjustable conveying speed
- Constructed from 304 stainless steel
- Suitable for produce of various sizes
- Equipped with multiple grading outlets
It is ideal for round produce, such as oranges, navel oranges, apples, mangoes, and onions.
The aperture sizes of the drum increase in steps. Produce falls through the corresponding holes based on its diameter and enters the designated outlet.
Key Features:
- Constructed from 304 stainless steel
- Robust, corrosion-resistant body
- Suitable for round fruits and vegetables
- Supports grading across multiple sizes
It is perfect for small, round fruits such as cherries, cherry tomatoes, lychees, and plums.
The gap between the tracks gradually widens. Smaller fruits drop through the appropriate gap, while larger fruits continue moving forward.
The track structure is ideal for small, delicate fruits that require gentle handling during the grading process.
Key Features:
- Soft padding on product contact surfaces
- Food-grade silicone conveyor belts
- Adjustable grading sizes
- Stainless steel construction
Weight grading machines for fruits & vegetables
The weight grading equipment automatically sorts individual fruits and vegetables based on their weight. After entering the machine, the produce is weighed individually and then conveyed to the corresponding grade classification zone based on preset weight ranges.
Users can configure different weight grades to meet specific sales, packaging, or processing requirements. For example: 100–150 g, 150–200 g, 200–250 g, 250 g and above.
Foodline provides different grading types for different fresh produce and production needs. Selecting the right fruit and vegetable grader facilitates the sorting of produce into specific grades prior to further processing. Choose the appropriate grading method based on your product characteristics and grading requirements.
Technical Parameters
| Fruit and Vegetable Grader Machine | |||
| Type | Roller Graders | Drum Graders | Track Graders |
| Specifications | Voltage: 380V Power: 3KW Machine Dimensions: 6500 x 2000 x 100 mm Sorting Specification: 30-70 mm (Customizable) Sorting Levels: 3 – 6 Levels Capacity: 2000 – 4000 KG/H | Power: 1.5 KW Voltage: 380V Machine Dimensions: 5010 x 1010 x 930 mm Sorting Levels: 3 – 10 Levels Net Weight: 500 KG Capacity: 2000 KG/H | Power: 0.55 KW Voltage: 220V / 380V Machine Dimensions: 4000 x 700 x 900 mm Weight: 110 KG Sorting Levels: 3 – 6 Levels Capacity: 500 – 900 KG/H |
Tell Us Your Produce and Capacity – We’ll Quote You Back
Why Use Fruit and Vegetable Grading Equipment
- Faster Grading Speeds – Reduces the time required for manual sorting by size or weight.
- Consistent Product Specifications – Separates produce of varying sizes into distinct grades, facilitating easier packaging.
- Reduced Manual Labor – Lowers the need for manual sorting during daily production.
- Continuous Operation – Suitable for continuous fruit and vegetable processing lines.
- Multiple Grading Levels – Offers flexible grading options (e.g., 3, 4, or 6 levels) to suit production needs.
- Easy Line Integration – Seamlessly connects with washing, conveying, packaging, and other equipment.
Our fruit and vegetable grader reduces the need for manual sorting and helps classify produce into distinct grades. This is a practical solution for businesses involved in packaging, sales, and further processing. Ready to grade your produce? Contact us today for pricing.
Not Sure What It Costs? Just Ask – We’ll Quote You
Who Can Use Fruit and Vegetable Sorting Equipment
Our fruit and vegetable grader is suitable for:
- Fruit packing houses
- Vegetable processing plants
- Fresh produce suppliers
- Agricultural cooperatives
- Food processing enterprises
- Fruit and vegetable exporters
Customize Your Equipment for Grading of Fruits and Vegetables
Foodline configures fruit and vegetable grader machine to meet your specific production requirements.
1. Product: What type of fruit or vegetables do you process?
2. Capacity: How many kilograms or tons per hour?
3. Grading Levels: 4, 5, 6, or other levels?
4. Grading Criteria: Size or weight?
5. Equipment Layout: Standalone unit or a complete grading production line?
6. Power Supply: Voltage and frequency suitable for your market.
Complete Your Inquiry and Get a Grader Price List
Foodline: Your Fruit & Vegetable Equipment Partner
- Factory Direct Supply — Purchase directly from the manufacturer.
- Professional Manufacturer — Integrating R&D and production.
- Customized Equipment — Equipment configured to your specific needs.
- Comprehensive Support — Providing grading, washing, conveying, and packaging equipment.
- Technical Support — Assistance with equipment installation and operation.
- Spare Parts Support — Supply of parts required for equipment maintenance.
- Global Export Experience — Serving customers worldwide.
Ready to Grade Your Produce?
Please send us your project details so we can discuss your grading requirements. Before you place an order, our team can assist you in selecting the right fruit and vegetable grader and discuss the equipment details with you.
Fill Out Our Quick Form to Receive Machine Prices
